🧱 Notification System — Factory (System Design Question — Solution)

This document is a solution write-up for the system design question: implement a notification system that can send messages through different channels (Email, SMS, Push) based on user preferences. It presents the problem, a practical TypeScript implementation using the Factory pattern, usage examples, and notes on production considerations.

Problem — Notification System (Factory use-case)

Modern applications need to communicate with users through various channels. The requirements for a flexible notification system are:

Support multiple notification channels (Email, SMS, Push)
Allow sending to multiple channels for a single notification
Make channel selection flexible and configurable
Keep channel implementations independent and encapsulated
Allow easy addition of new notification channels

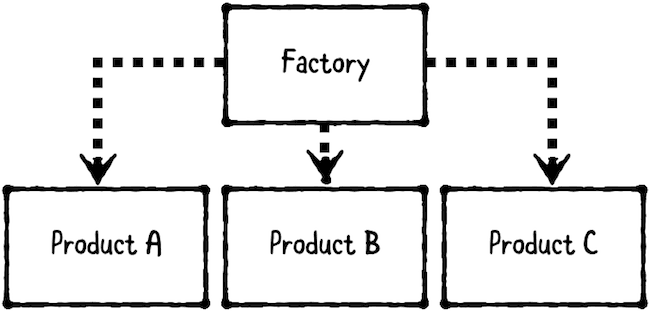

Why does this map well to the Factory pattern?

Different notification channels share a common interface but have distinct implementations
Channel selection can be determined at runtime
New channels can be added without modifying existing code
Factory encapsulates the creation logic and dependencies
Clients remain decoupled from specific notification implementations

Example Inputs (for the tutorial)

A TypeScript interface defining the notification contract:

export type TNotificationChannel = 'Email' | 'SMS' | 'Push';

export type TNotificationPayload = {
    id: string;
    message: string;
    channels: TNotificationChannel[];
};

export type TNotificationResult = {
    id: string;
    error?: string;
    success: boolean;
    channel: TNotificationChannel;
};

export interface INotify {
    notify(payload: TNotificationPayload): TNotificationResult;
}

Solution — TypeScript Notification System

We'll implement these key components:

Channel-specific notifiers: Concrete implementations for Email, SMS, and Push
NotificationFactory: Creates appropriate notifier instances
NotificationService: Coordinates sending through multiple channels

Key Design Choices

Interface-based design for notification channels
Factory pattern for notifier instantiation
Service layer for multi-channel coordination
Type-safe channel enumeration
Consistent result structure across channels

🧩 Implementation (Concise, Annotated)

// Concrete notification implementations
export class EmailNotification implements INotify {
    public notify(payload: TNotificationPayload): TNotificationResult {
        // Simulate sending email notification
        console.log(`Sending Email Notification: ${payload.message}`);
        return {
            id: payload.id,
            success: true,
            channel: 'Email'
        };
    }
}

export class SMSNotification implements INotify {
    public notify(payload: TNotificationPayload): TNotificationResult {
        // Simulate sending SMS notification
        console.log(`Sending SMS Notification: ${payload.message}`);
        return {
            id: payload.id,
            success: true,
            channel: 'SMS'
        };
    }
}

export class PushNotification implements INotify {
    public notify(payload: TNotificationPayload): TNotificationResult {
        // Simulate sending Push notification
        console.log(`Sending Push Notification: ${payload.message}`);
        return {
            id: payload.id,
            success: true,
            channel: 'Push'
        };
    }
}

// Factory for creating notification instances
export class NotificationFactory {
    public createNotification(channel: string): INotify {
        switch (channel) {
            case 'Email':
                return new EmailNotification();
            case 'SMS':
                return new SMSNotification();
            case 'Push':
                return new PushNotification();
            default:
                throw new Error(`Notification channel ${channel} is not supported.`);
        }
    }
}

// Service for coordinating multi-channel notifications
export class NotificationService {
    private factory: NotificationFactory;

    public constructor(factory: NotificationFactory) {
        this.factory = factory;
    }

    public sendNotification(payload: TNotificationPayload): TNotificationResult[] {
        const results: TNotificationResult[] = [];
        for (const channel of payload.channels) {
            const notifier = this.factory.createNotification(channel);
            const result = notifier.notify(payload);
            results.push(result);
        }
        return results;
    }
}

🧠 Usage Example

export class Client {
    public static main(): void {
        // Create factory and service
        const factory = new NotificationFactory();
        const service = new NotificationService(factory);

        // Create notification payload
        const payload: TNotificationPayload = {
            id: '1',
            message: 'This is a test notification',
            channels: ['Email', 'SMS', 'Push']
        };

        // Send notification through all channels
        const results = service.sendNotification(payload);
        console.log('Notification Results:', results);
    }
}

// Run the client
Client.main();

// Output:
// Sending Email Notification: This is a test notification
// Sending SMS Notification: This is a test notification
// Sending Push Notification: This is a test notification
//
// Notification Results: [
//   { id: '1', success: true, channel: 'Email' },
//   { id: '1', success: true, channel: 'SMS' },
//   { id: '1', success: true, channel: 'Push' }
// ]

Notes, Edge-Cases & Alternatives

Error Handling:
- Each channel should handle its specific errors
- Service layer should aggregate results
- Failed channels shouldn't stop other channels
Channel Configuration:
- Channels might need different configuration
- Consider using dependency injection for channel-specific dependencies
- Support runtime configuration updates
Async Operations:
- Real implementations would be asynchronous
- Consider using Promise.all for parallel sending
- Implement timeouts per channel
Testing:
- Mock each channel independently
- Test factory with invalid channels
- Verify multi-channel coordination
- Test error scenarios
Extension Points:
- New channels just need to implement INotify
- Factory can be extended without modifying existing code
- Service can be enhanced with retry logic or priorities

✅ Conclusion

The Factory pattern provides a clean solution for managing multiple notification channels. The TypeScript implementation demonstrates how to create a flexible, extensible system that can easily accommodate new channels while keeping the core logic simple and maintainable.

Key benefits realized:

Clean separation between channel implementations
Runtime channel selection
Easy addition of new channels
Consistent interface across all channels
Simple multi-channel coordination
Type-safe implementation
